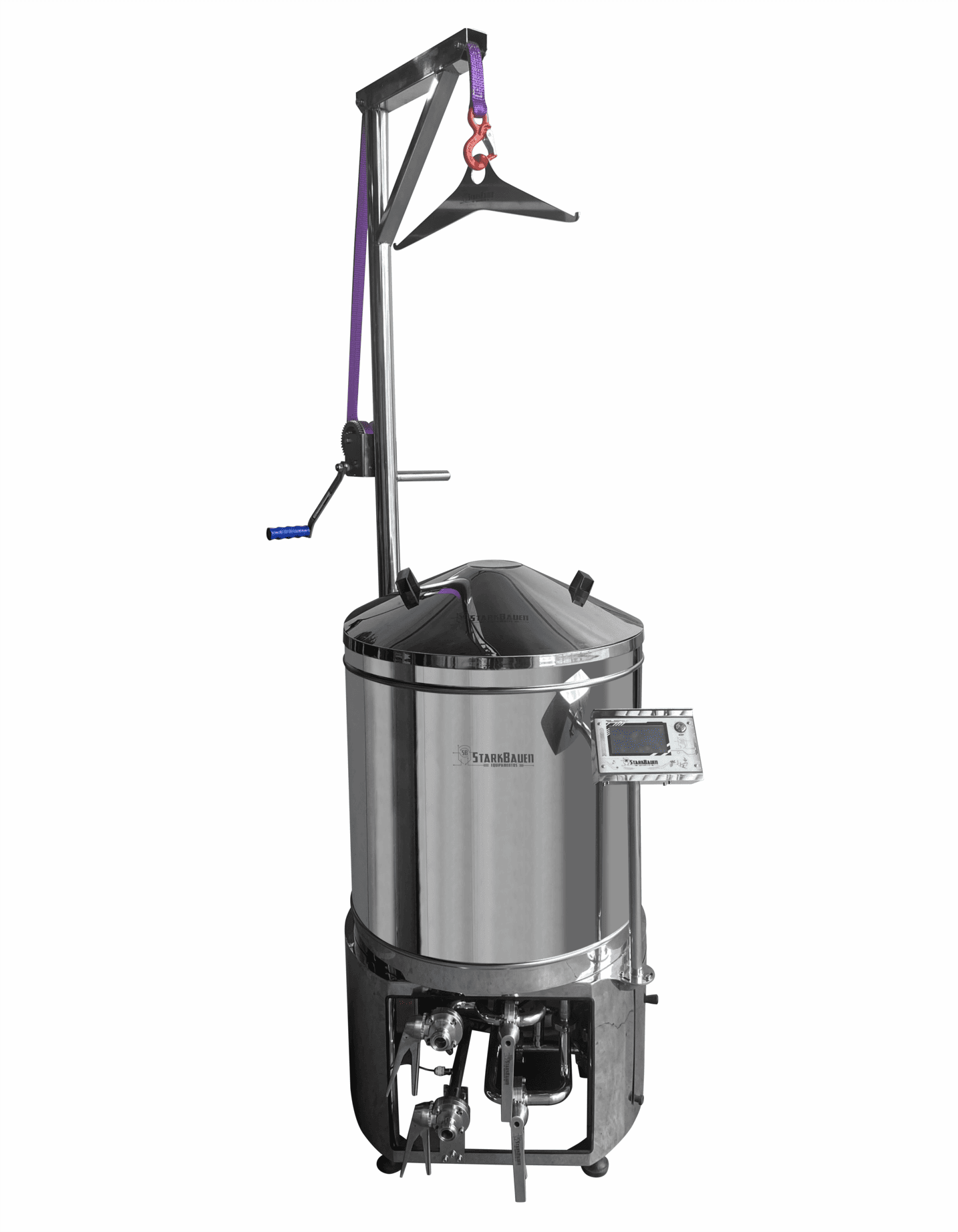

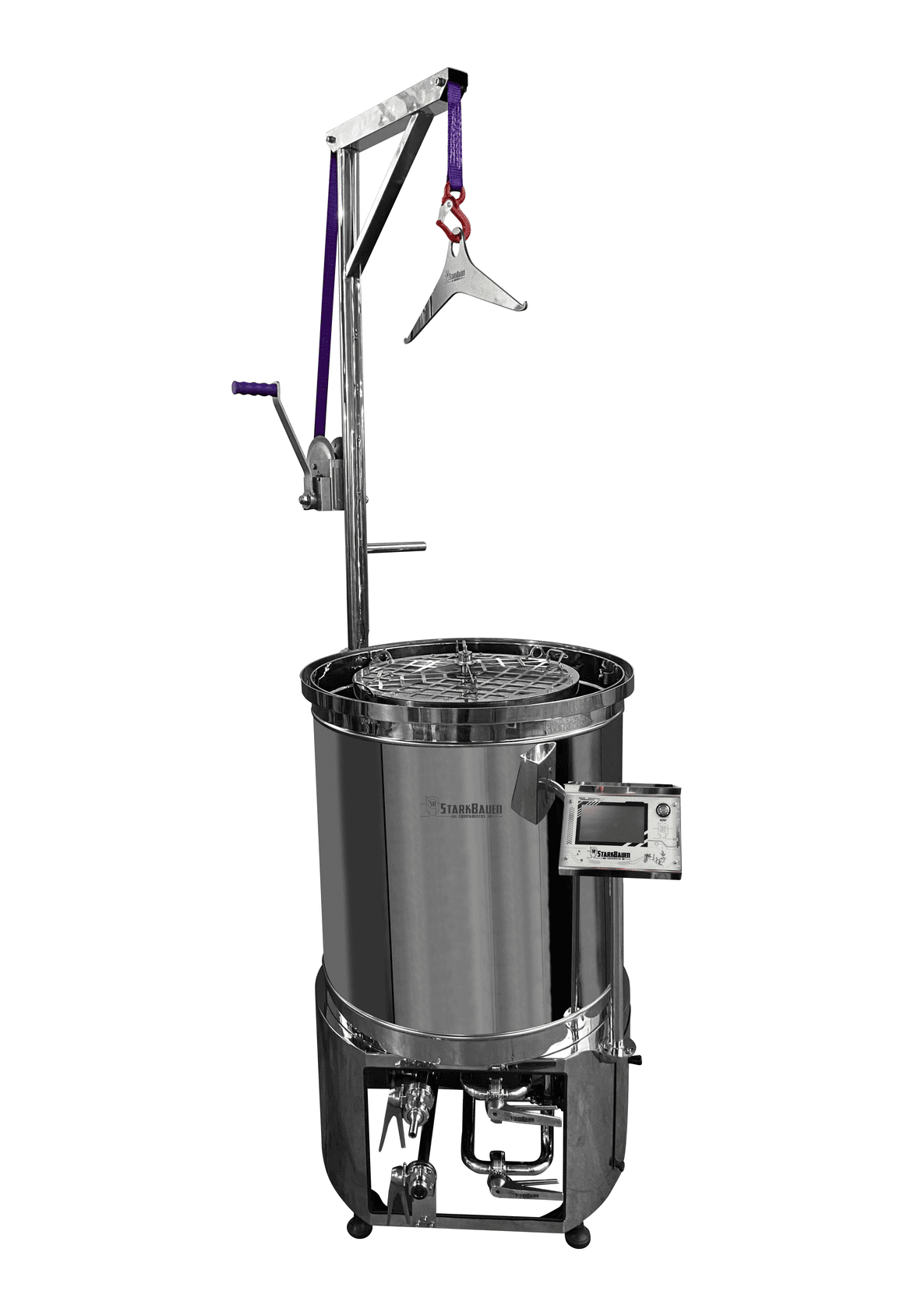

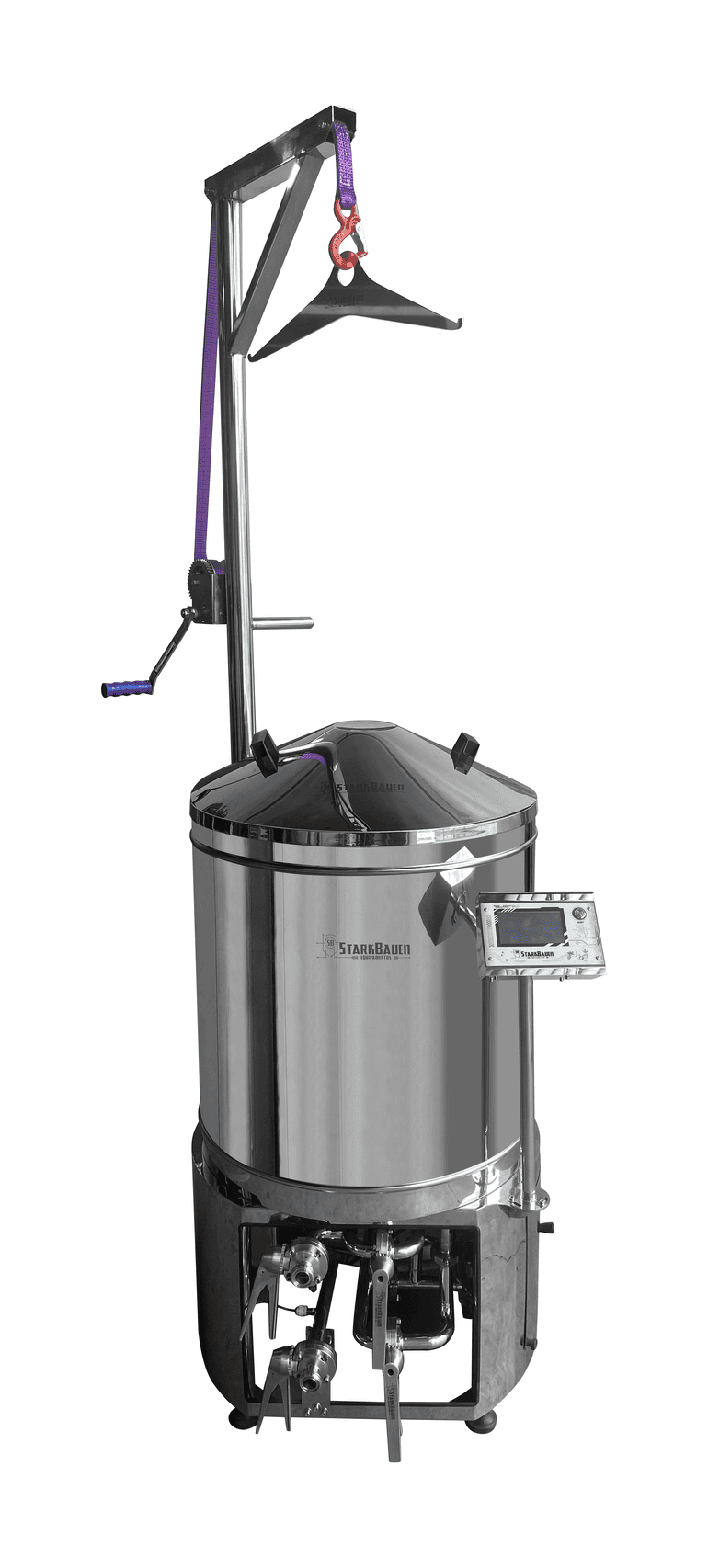

SB100

Innovative and automated machine, ideal for home brewers and Brewpubs. With high
productivity systems and a differentiated philosophy, focused on high Energy Efficiency and practical operation, ensuring lower energy consumption, greater use in the process and, consequently, better cost-benefit.

Total volume of 200 liters
Brew up to 150 liters (normal beer)
30 kg Malt Tube Capacity

DETAILED DESCRIPTION

  • Completely electric and automated;
  • Power of 11 kW;
  • Supply voltage 220 or 380 V 60 Hz three-phase;
  • Control voltage 12 VDC, avoiding risks of electric shock;
  • Built in stainless steel 304;
  • Ascending Circulation System;
  • Touch Screen control panel;
  • Stores up to 10 recipes
  • Professional pump in stainless steel;
  • Valves in 304 stainless steel;
  • Stainless steel piping with TC Union (to dismantle the entire assembly);
  • Dual Temperature Measurement;
  • Whirlpool system and mash cooling incorporated into the machine;
  • 304 stainless steel plate changer incorporated into the machine;
  • Temperature controlled by PID, ensuring precise temperature control and ramps (1°C/min);
  • Barrier to separate the trub.
  • Manual winch with strap;

Items that accompany the equipment:

  • Main pan with pump, stainless steel pipes, TC unions, three-way valves, caster for movement
  • and with pedestal for lifting;
  • Exclusive StarkBauen Programming;
  • Built-in Heat Exchanger
  • Malt tube;
  • Rubber malt tube seal;
  • Multifunction lid;
  • Lower and upper reinforcement/filter screen;
  • Oring screen seal reinforcement;
  • Screen separator tube;
  • Clamping nut;
  • Clamping washer;
  • Centering and fixing rod for the malt tube;
  • Support for malt tube;
  • Central of valves.
